Multi-Sampler x12 Stereo

Detailed: LSP Multi-Sampler x12 Stereo (SZ12)

Formats: LV2, VST2, JACK

Categories: Instrument

Developer: Vladimir Sadovnikov

Description:

This plugin implements 1-instrument MIDI sample player with stereo input and stereo output. For each instrument there are up to eight samples available to play for different note velocities.

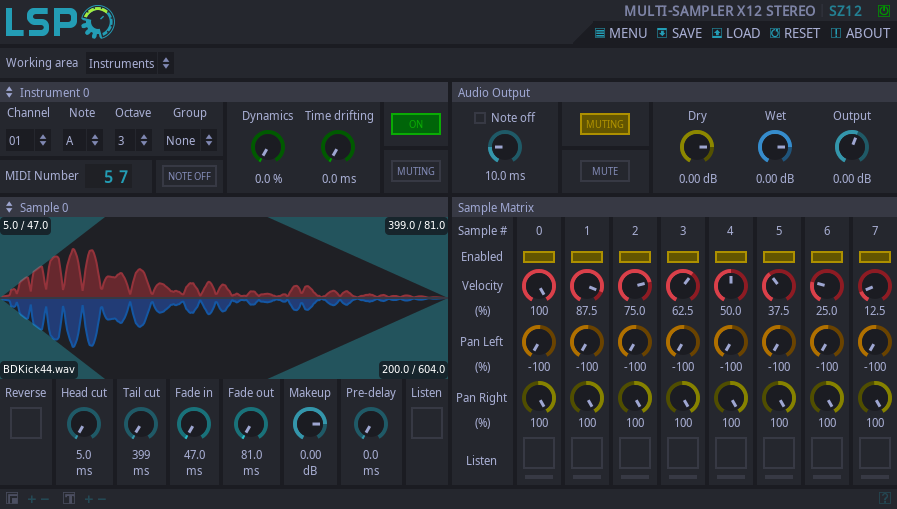

Controls:

• Bypass - hot bypass switch, when turned on (led indicator is shining), the plugin does not affect the input signal.
• Working area - combo box that allows to switch between instrument setup and instrument mixer.

'Instrument mixer' section:

• Enabled - enables the corresponding instrument.
• Mix gain - the volume of the instrument in the output mix.
• Pan Left - the panorama of the left channel of the corresponding instrument.
• Pan Right - the panorama of the right channel of the corresponding instrument.
• MIDI # - the MIDI number of the note associated with the corresponding instrument. Allows to change the number with mouse scroll or mouse double click.
• Note on - indicates that the corresponding instrument has triggered the MIDI Note On event.
• Listen - forces the corresponding instrument to trigger the Note On event.

'Instrument' section:

• Channel - the MIDI channel to trigger notes by the selected instrument.
• Note - the note and the octave of the note to trigger for the selected instrument.
• MIDI # - the MIDI number of the note for the selected instrument.
• Group - The group assigned to the instrument. The sample playback will be stopped for all instruments in the same group except the one's that has triggered the Note On event.
• Muting - when enabled, turns off sample playback for selected instrument when the Channel Control MIDI message is received.
• Note off - when enabled, turns off sample playback for selected channel when the Note Off MIDI message is received. The sample fade-out time can be controlled by the corresponding knob.
• Dynamics - allows to randomize the output gain of the selected instrument.
• Time drifting - allows to randomize the time delay between the MIDI Note On event and the start of the sample's playback for the selected instrument.

'Samples' section:

• Sample # - the selector of the current displayable/editable sample for the selected instrument.
• Head cut - the time to be cut from the beginning of the current sample for the selected instrument.
• Tail cut - the time to be cut from the end of the current sample for the selected instrument.
• Fade in - the time to be faded from the beginning of the current sample for the selected instrument.
• Fade out - the time to be faded from the end of the current sample for the selected instrument.
• Makeup - the makeup gain of the sample volume for the selected instrument.
• Pre-delay - the time delay between the MIDI note has triggered and the start of the sample's playback for the selected instrument
• Listen - the button that forces the playback of the selected sample for the selected instrument

'Sample matrix' section:

• Enabled - enables/disables the playback of the corresponding sample for the selected instrument.
• Active - indicates that the sample is loaded, enabled and ready for playback.
• Velocity - the maximum velocity of the note the sample can trigger. Allows to set up velocity layers between different samples.
• Pan Left - the panorama of the left audio channel of the corresponding sample.
• Pan Right - the panorama of the right audio channel of the corresponding sample.
• Listen - the button that forces the playback of the corresponding sample.
• Note on - indicates that the playback event of the correponding sample has triggered.

'Audio channel' section:

• Muting - when enabled, turns off any sample playback when the Channel Control MIDI message is received.
• Note off - when enabled, turns off any sample playback when the Note Off MIDI message is received. The sample fade-out time can be controlled by the corresponding knob.
• Dry amount - the gain of the input signal passed to the audio inputs of the plugin.
• Wet amount - the gain of the processed signal.
• Output gain - the overall output gain of the plugin.
• Mute - the button that forces any sample playback to turn off.
