Multi-Sampler x12 DirectOut

Detailed: LSP Multi-Sampler x12 DirectOut (SZ12D)

Formats: LV2, VST2, JACK

Categories: Instrument

Developer: Vladimir Sadovnikov

Description:

This plugin implements 12-instrument MIDI sample player with stereo input and stereo output. For each instrument there are up to eight samples available to play for different note velocities. Also each instrument has it's own stereo output that makes possible to record instrument outputs into individual tracks.

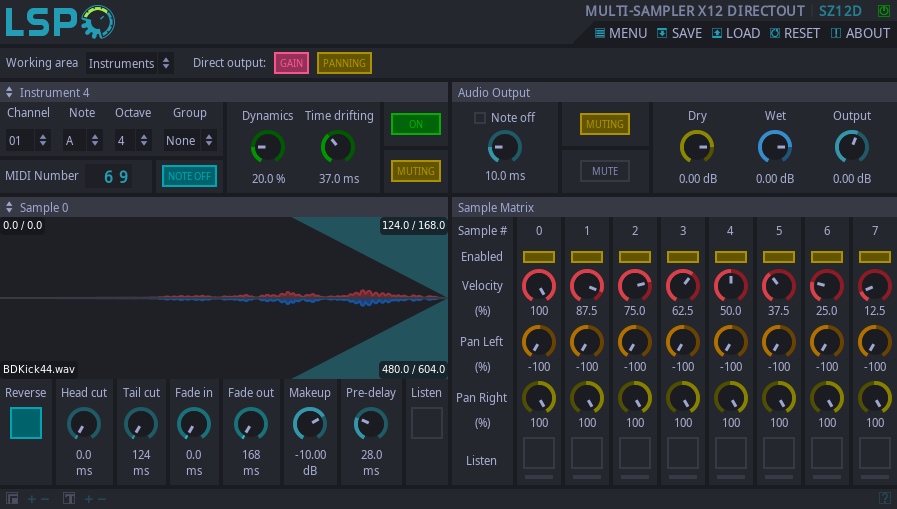

Controls:

• Bypass - hot bypass switch, when turned on (led indicator is shining), the plugin does not affect the input signal.
• Working area - combo box that allows to switch between instrument setup and instrument mixer.

'Instrument mixer' section:

• Enabled - enables the corresponding instrument.
• Mix gain - the volume of the instrument in the output mix.
• Direct Out - enables the output of the instrument to the separate track.
• Pan Left - the panorama of the left channel of the corresponding instrument.
• Pan Right - the panorama of the right channel of the corresponding instrument.
• MIDI # - the MIDI number of the note associated with the corresponding instrument. Allows to change the number with mouse scroll or mouse double click.
• Note on - indicates that the corresponding instrument has triggered the MIDI Note On event.
• Listen - forces the corresponding instrument to trigger the Note On event.

'Instrument' section:

• Channel - the MIDI channel to trigger notes by the selected instrument.
• Note - the note and the octave of the note to trigger for the selected instrument.
• MIDI # - the MIDI number of the note for the selected instrument.
• Group - The group assigned to the instrument. The sample playback will be stopped for all instruments in the same group except the one's that has triggered the Note On event.
• Muting - when enabled, turns off sample playback for selected instrument when the Channel Control MIDI message is received.
• Note off - when enabled, turns off sample playback for selected channel when the Note Off MIDI message is received. The sample fade-out time can be controlled by the corresponding knob.
• Dynamics - allows to randomize the output gain of the selected instrument.
• Time drifting - allows to randomize the time delay between the MIDI Note On event and the start of the sample's playback for the selected instrument.

'Samples' section:

• Sample # - the selector of the current displayable/editable sample for the selected instrument.
• Head cut - the time to be cut from the beginning of the current sample for the selected instrument.
• Tail cut - the time to be cut from the end of the current sample for the selected instrument.
• Fade in - the time to be faded from the beginning of the current sample for the selected instrument.
• Fade out - the time to be faded from the end of the current sample for the selected instrument.
• Makeup - the makeup gain of the sample volume for the selected instrument.
• Pre-delay - the time delay between the MIDI note has triggered and the start of the sample's playback for the selected instrument
• Listen - the button that forces the playback of the selected sample for the selected instrument

'Sample matrix' section:

• Enabled - enables/disables the playback of the corresponding sample for the selected instrument.
• Active - indicates that the sample is loaded, enabled and ready for playback.
• Velocity - the maximum velocity of the note the sample can trigger. Allows to set up velocity layers between different samples.
• Pan Left - the panorama of the left audio channel of the corresponding sample.
• Pan Right - the panorama of the right audio channel of the corresponding sample.
• Listen - the button that forces the playback of the corresponding sample.
• Note on - indicates that the playback event of the correponding sample has triggered.

'Audio channel' section:

• Muting - when enabled, turns off any sample playback when the Channel Control MIDI message is received.
• Note off - when enabled, turns off any sample playback when the Note Off MIDI message is received. The sample fade-out time can be controlled by the corresponding knob.
• Dry amount - the gain of the input signal passed to the audio inputs of the plugin.
• Wet amount - the gain of the processed signal.
• Output gain - the overall output gain of the plugin.
• Mute - the button that forces any sample playback to turn off.
